PVI 100TL-480
100kW, 1000VDC, 480 VAC Transformerless String Inverters

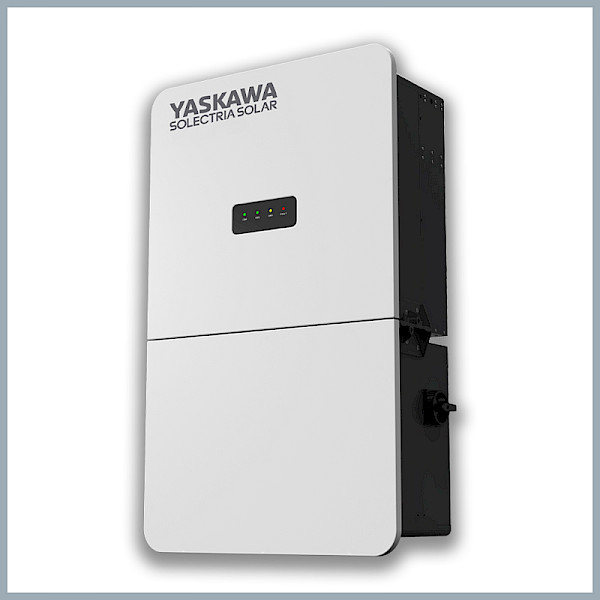

The PVI-100TL-480 is the largest 1000V transformerless inverters from Yaskawa Solectria Solar that are IEEE 1547-2018 compliant. It comes standard with AC and DC disconnects, six MPPTs, and a wiring box with 24 fused positions. Ideal for larger rooftop PV systems, its standard wirebox is Module-Level Rapid shutdown (MLRSD) ready to provide PV Rapid Shutdown System (PVRSS) compliance. It includes a built-in SunSpec compliant powerline communication transmitter from APsmart. To set itself apart, the ground bars between MPPT zones are isolated from one another; allowing the mixing of MLRSD and UL 3741 methods to be used on one inverter. Yaskawa Solectria Solar’s PVI-100TL-480 inverters provides flexibility, size and convenience unmatched in the industry.
PVI-100TL-480 Options
DC fuse bypass
Web-based monitoring
Safety Listing and Certifications
- UL1741-SA/SB Ed. 3
- UL1699B
- CSA-C22.2 NO.107.1-01
- IEEE1547-2018
- FCC PART15
PVI 100TL-480 Features
PVI 100TL-480 Options
Safety Listings & Certifications
Product Datasheet & Specifications
Additional Documentation & Media
